More iSeq IC Images

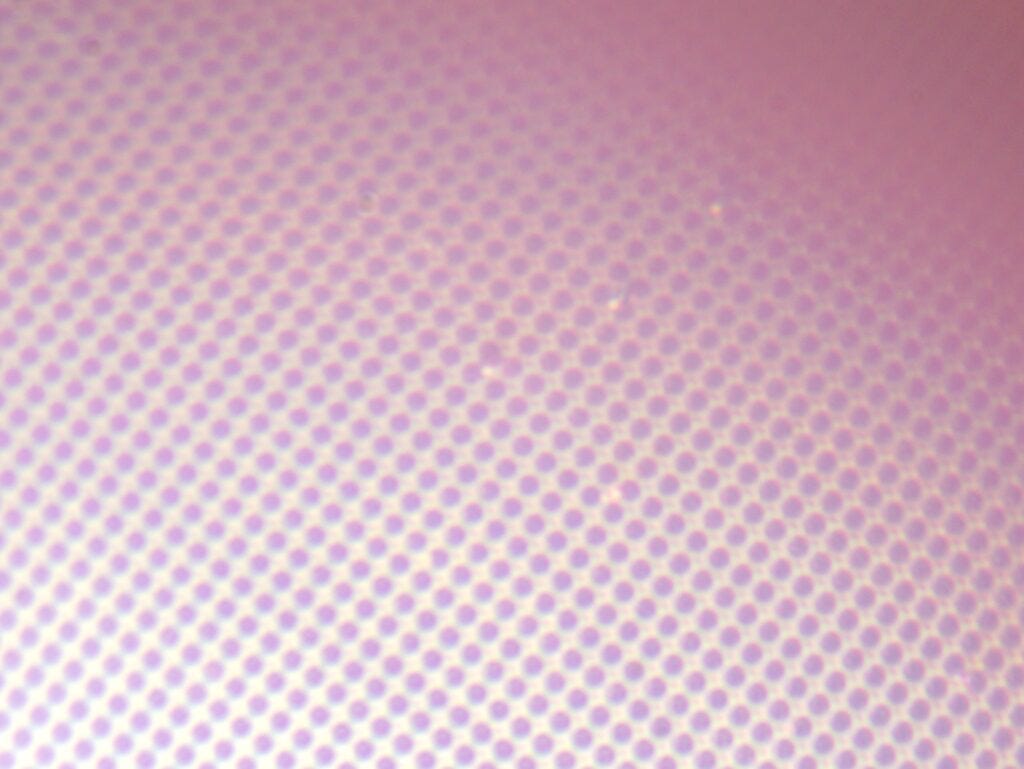

A while back I put up some images of an iSeq flow cell. With the SEM back online, I managed to take some non-optical images!

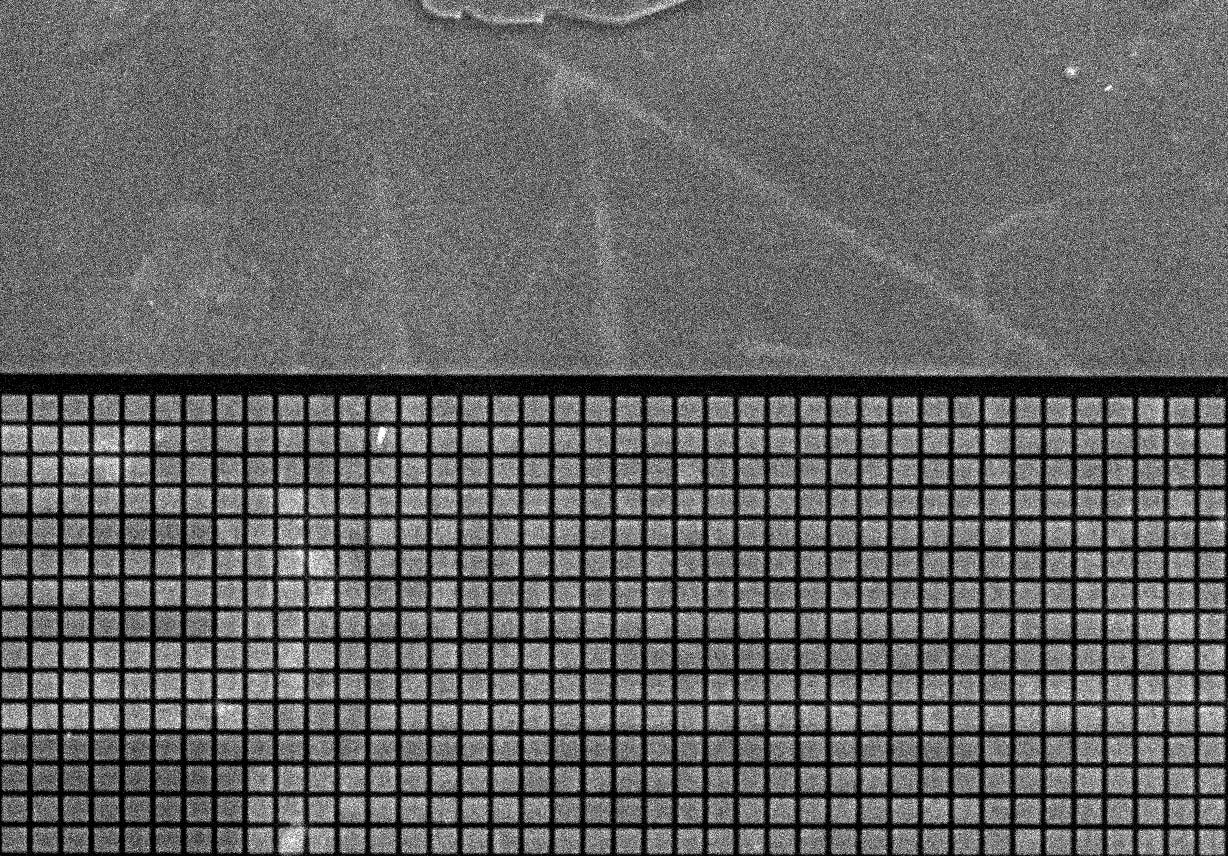

These look significantly different than those taken optically:

There are a few more images over on the Discord! Where speculation is welcome!

After the break I’ll try and puzzle this out myself.
