454 GS Junior - More Fluidics

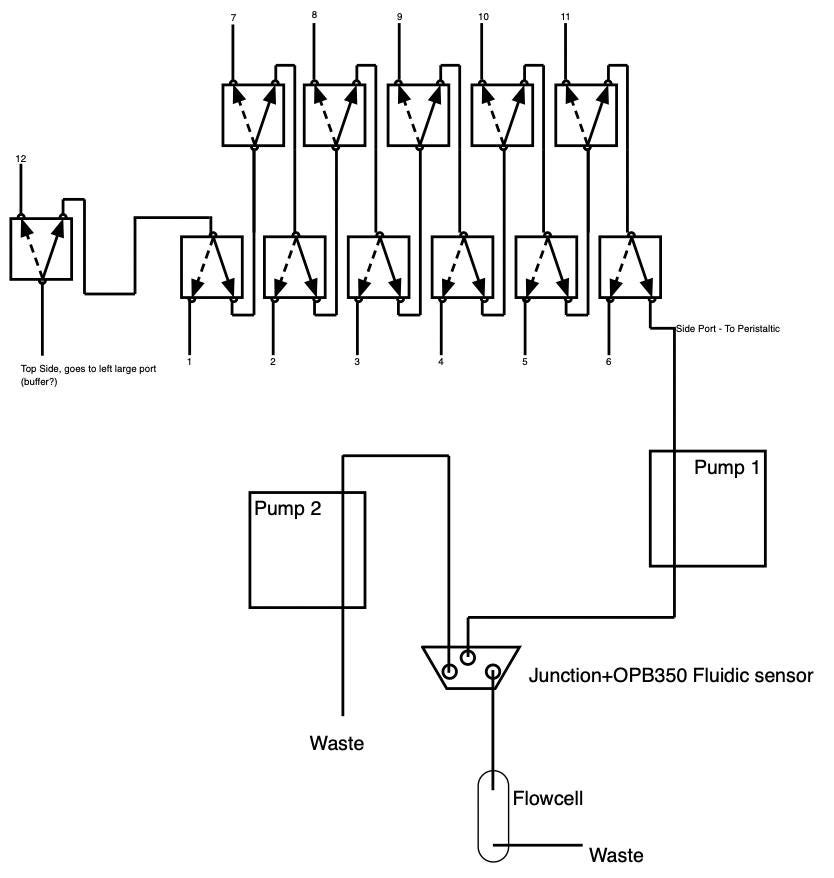

I’ve been poking around a little more in the GS Junior fluidic system. Here’s what I’ve got so far:

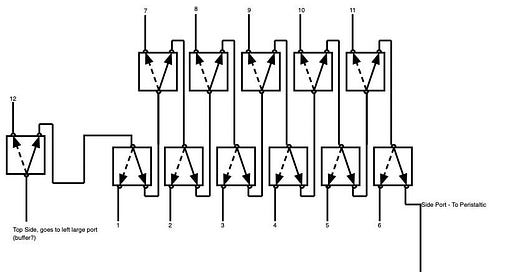

The valve array is milled out of a single block and uses these cute little SMC valves is somewhat similar to the setup in the Ion Torrent PGM.

Pumping

The configuration is quite different that the syringe pump based configuration in the HiSeq and other Illum…
