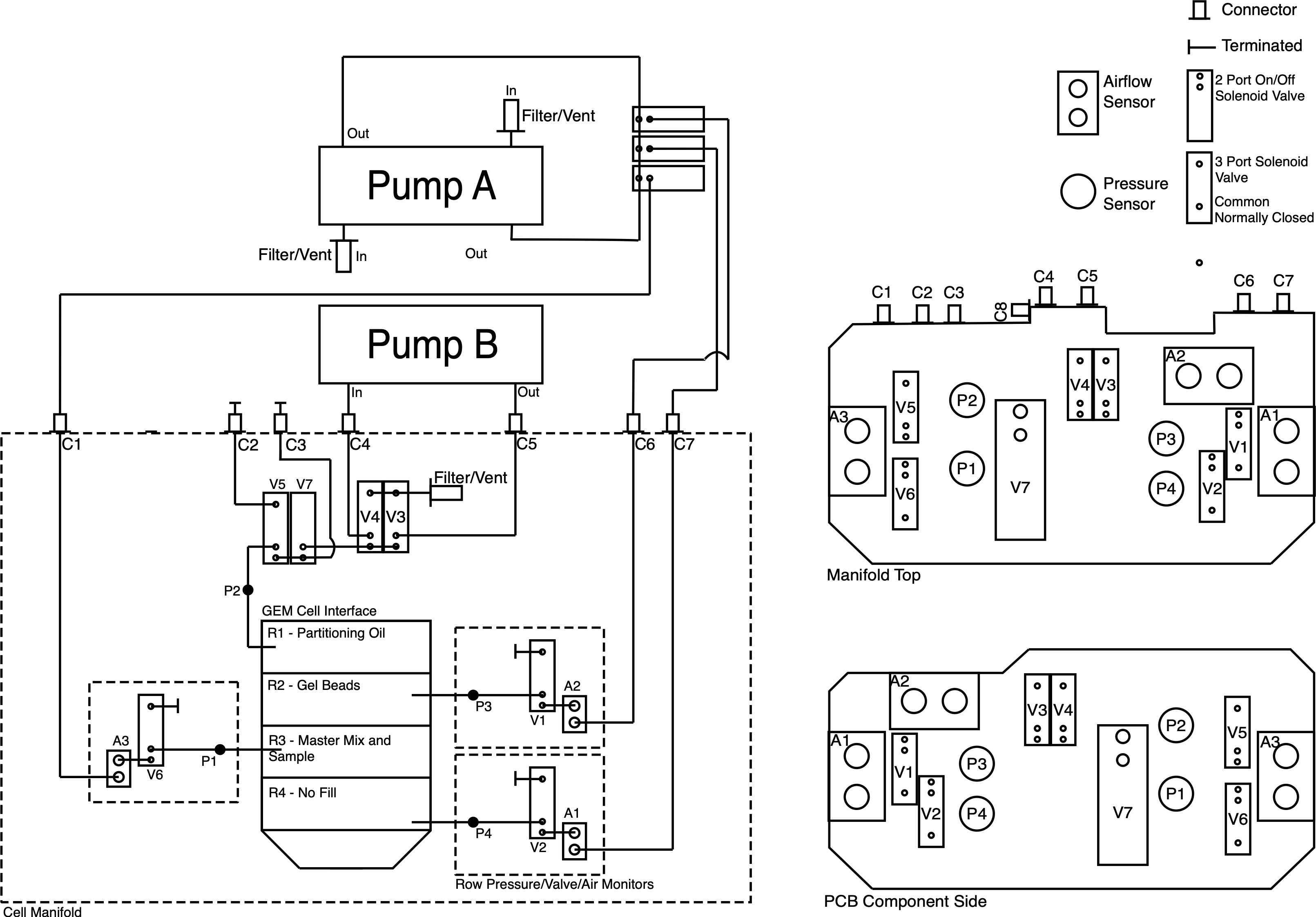

Last time I looked at the Chromium Controller estimating its BOM cost at <$5000. This time I wanted to further document the pneumatic system which forms the core of the Chromium Controller. You can see the result of my documentation work in the diagram above.

The pneumatic system here is significantly more complicated than the fluidic system in the HiSeq X1. We can however simplify this with the following conceptual diagram:
